Having the ability to load or unload a conveyor
from one point or a multiple of points along
any one side of a conveyor section, is a

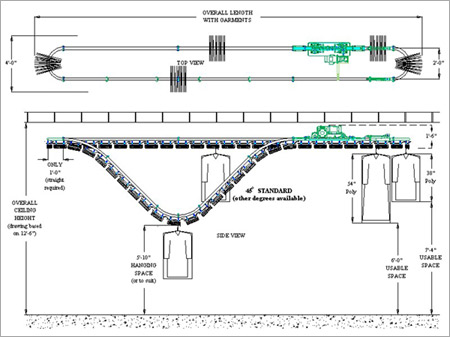

great advantage. The V-Dip design takes
one side of the conveyor and brings it down
to one or more work stations, leaving the
other side up and out of the way. With the
flexibility of the Bridgeveyor design, we
even have the ability to V-Dip into the
corner of a room, declining on one side
and inclining back up on the other. With
a typical garment application, a V-Dip conveyor
will occupy only ± 2’ of working
space, allowing your work area to remain
clean, uncluttered and professional in appearance.
Perfect for narrow areas or where floor
space is at a premium, this conveyor model
maximizes your usable floor space. |
| |
|
|
| |
| |
| Standard
Features Included: |
| •
Forward/Stop/Reverse hand
switch |
|
| • D-1000
Drive Unit complete with safety cover
(to prevent injury) |
|
| • DS-975
Dust Shield (protects products below
from debris) |
|
| •
SR-306 Storage Rack (choice of 2,
5 or 10 slots per foot) |
|
| •
TU-604 Take-Up Unit (allows system
to absorb initial chain stretch |
|
| |
|
| Optional
Equipment: |
|
| •
Control Box |
|
| •
Forward/Stop/Reverse Remote
Station |
|
| •
Automated Retrieval System |
|
| |
|
| |
|
|
|
|
 |
|
| |
|
|
|
|
